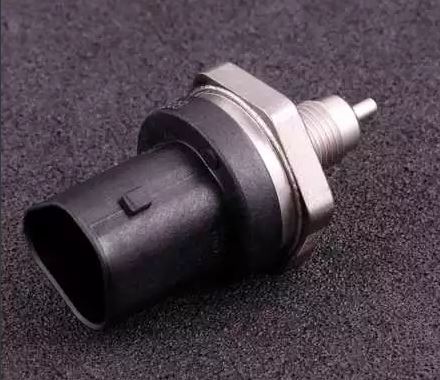

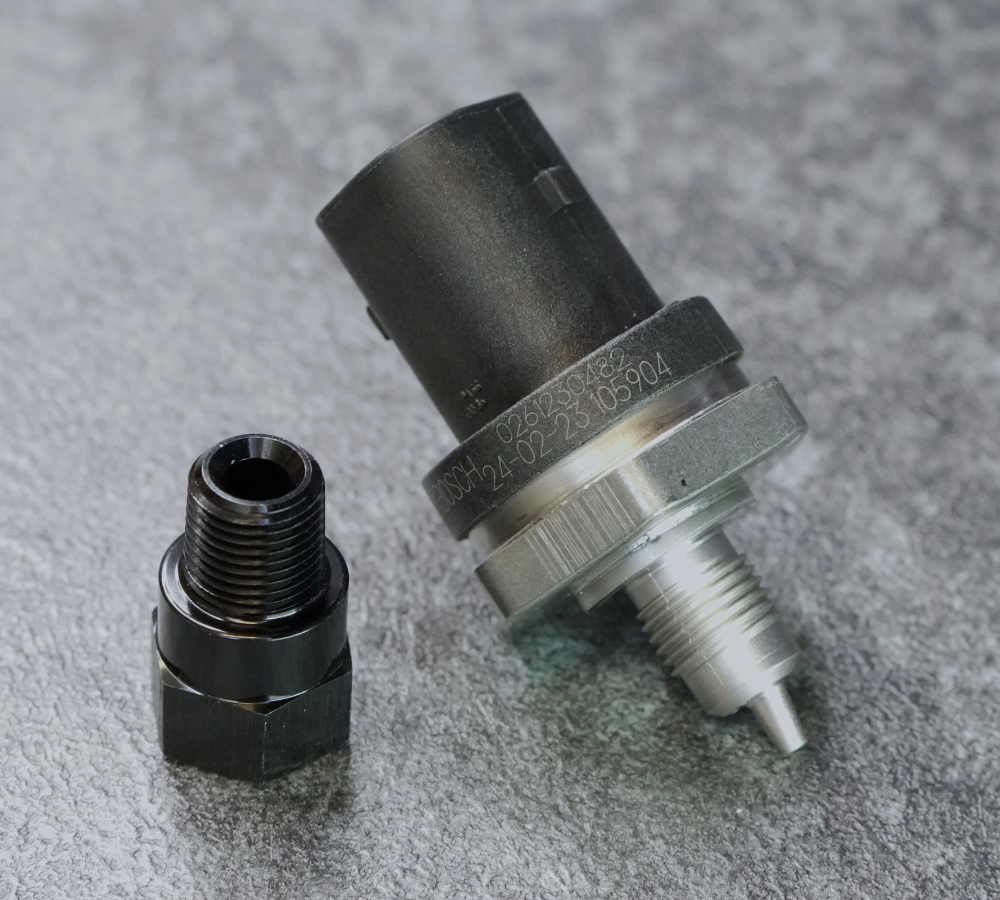

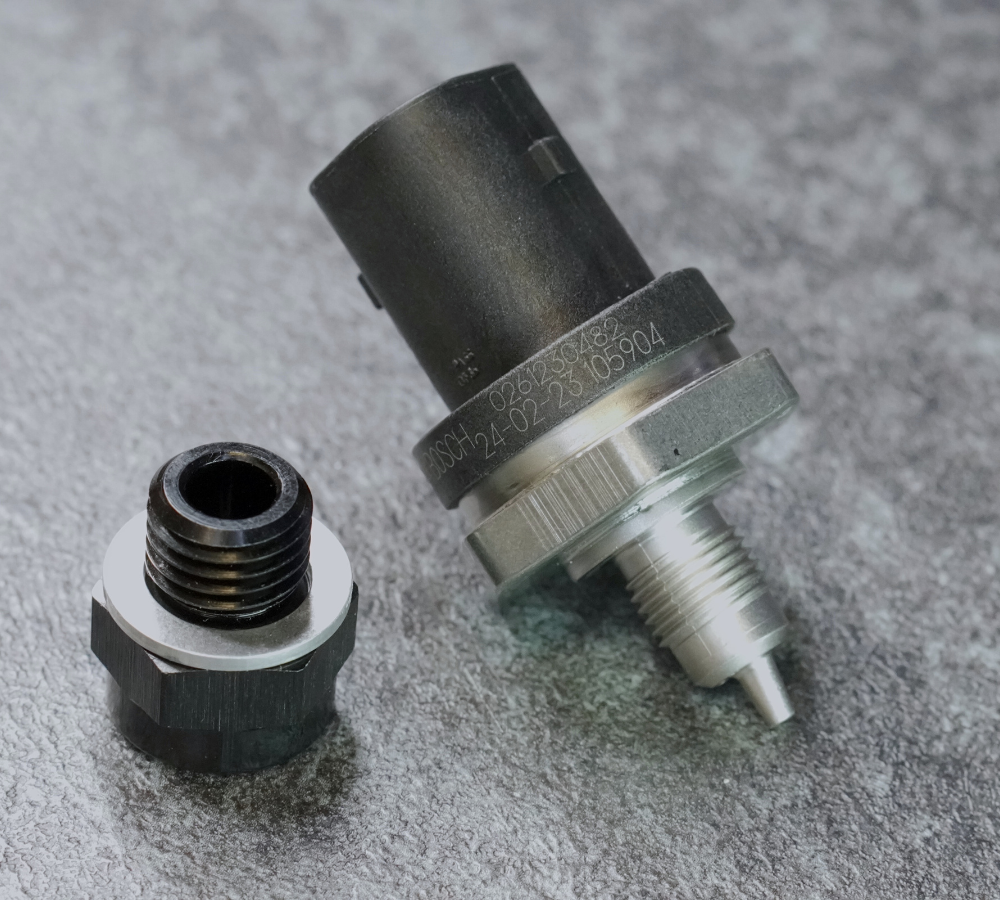

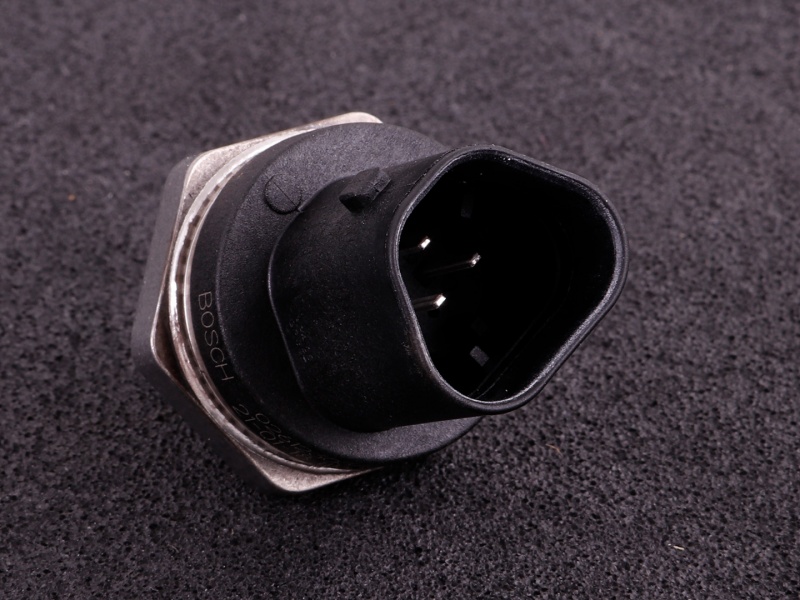

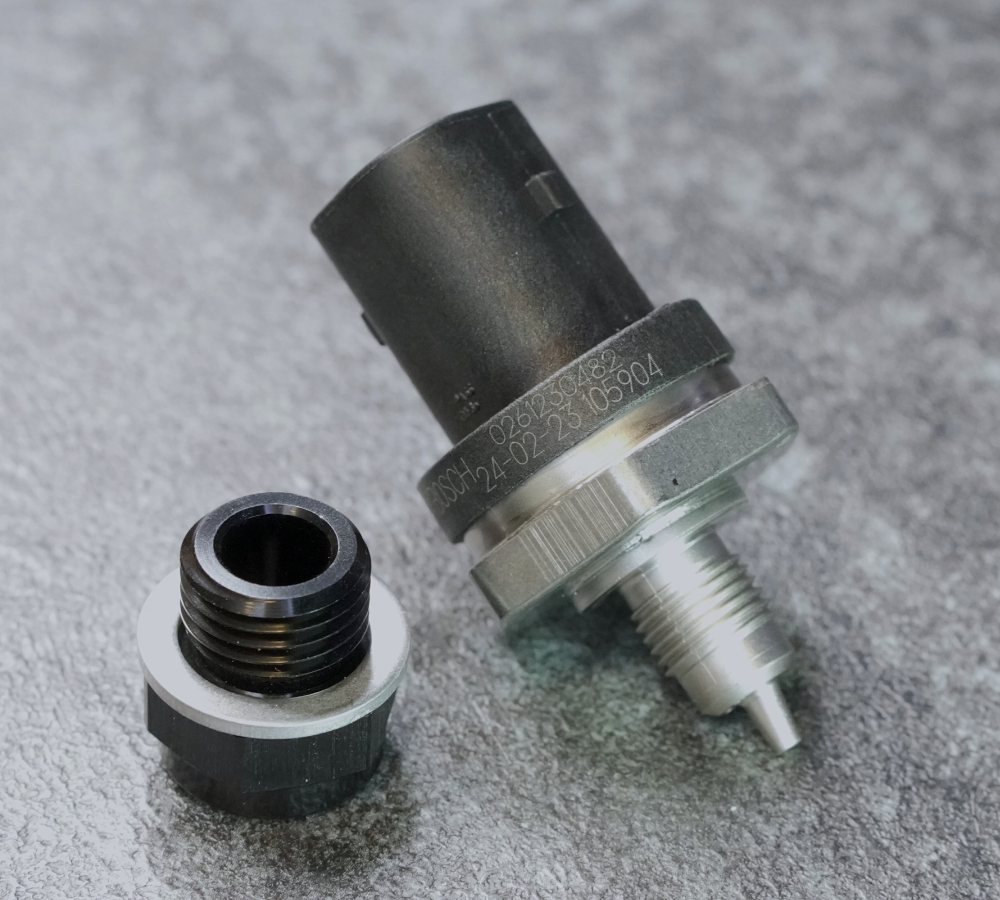

Bosch Combined pressure and temp fluid sensor M10x1 0261230340 / 0261230482

Thread: M10x1.0 Bosch 0261230340 sensor for measuring pressure 10bar and temperature max 140c. Perfect for fuel and oil. Annual pulling torque 37.5nm +- 2.5nm pin2: Signal pressure (0.5V = 0bar, 4.5V = 10bar) pin3: +5V Supply pin4: Sensor Ground GND pin5: Temperature signal (0.5V = -40 deg C, 4.5V = 140 deg C) Compatible with VEMS and MaxxECU and more ATTENTION!! Note that the connectors of this sensor are often numbered incorrectly! ATTENTION!! Do not pull the sensor harder than 40nm! Use the included O-ring. Look at the sensor pinout, not the connector. Broken sensor due to incorrect connection, or too tightly tightened, will not be replaced.
