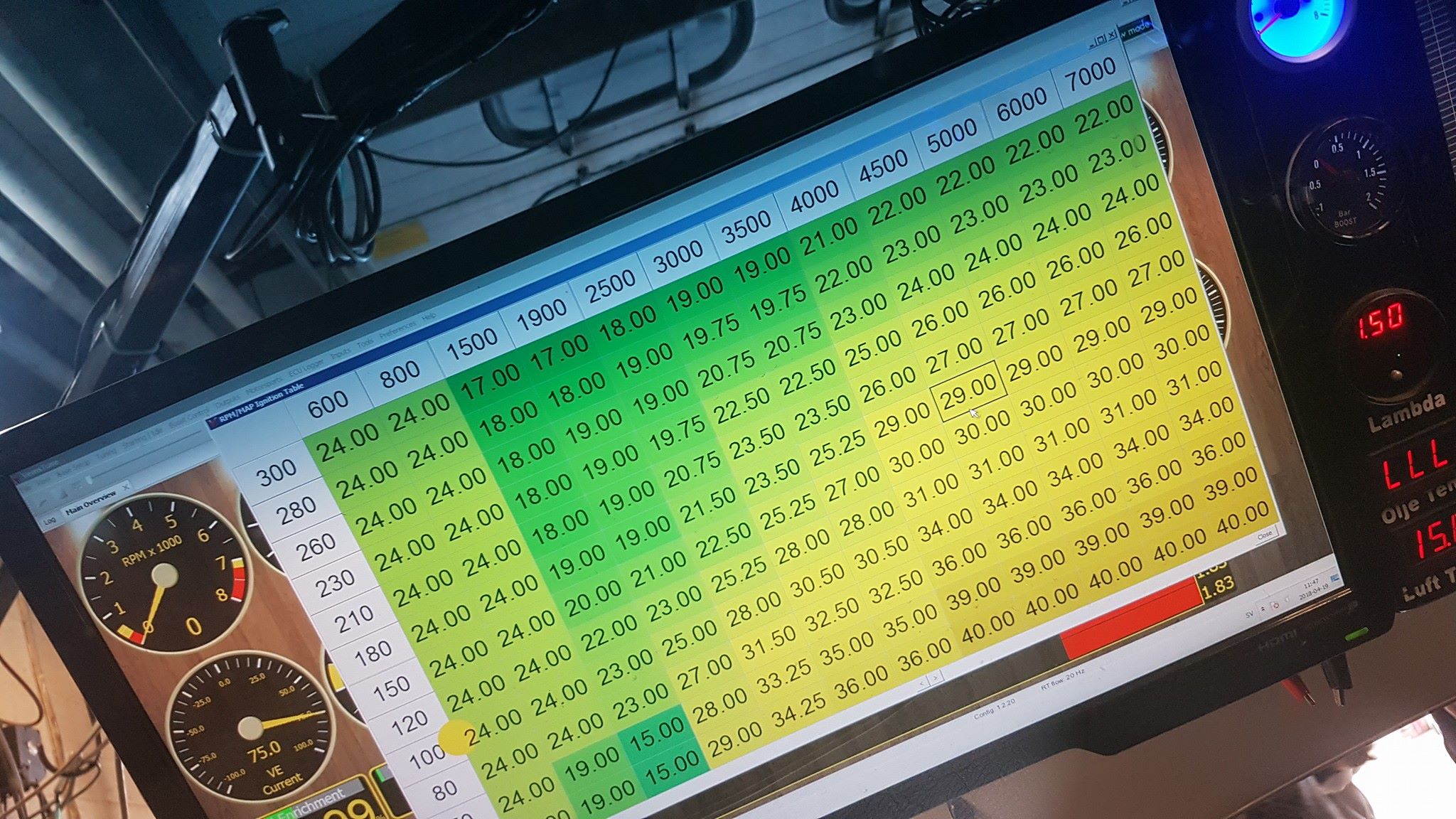

Complete tune for Opel Z20LET.
Injector: Siemens Deka 875cc
Fuel: E85
Turbo: Borg Warner EFR6758
Power: 360hp and 480nm on the front wheels.
NOTE: If you have bought syringes from us, do not buy the Base Tune, it is included :)
---- NOTE all driving is at your own risk! ----
Firmware: 1.2.31
4cyl standard 60-2 trigger + cam sync
Trigger Offset: 106 degrees
Pinouts:
Injectors: 7, 19, 8, 20
Ignition: 34, 24,10, 36 in tändföld.
Idle motor on pin 17
Boost control on pin 18
Fuel pump pin 15
Tachometer pin EC18 Pin4
Fan: Pin 3
WBO: LSU 4.9
Backwards compatible with previous firmwares, but we recommend updating to 1.2.31
