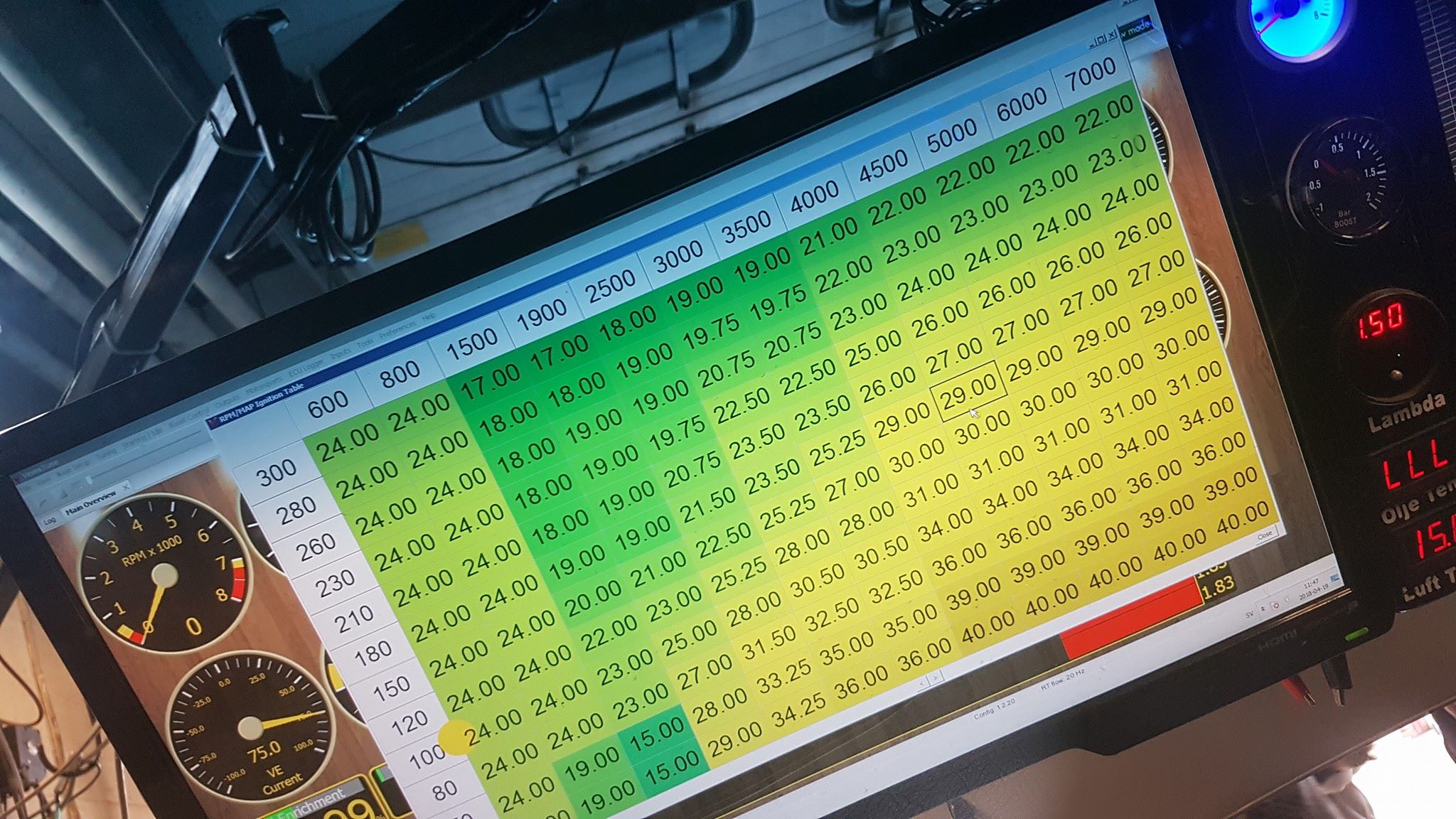

Base Tune VEMS volvo 5cyl

Base Tune VEMS volvo 5cyl

€23.52
Base Tune for VEMS - Volvo 850, 5 cyl engine with 601/VAG ignition coils. NOTE: If you have bought syringes from us, do not buy the Base Tune, it is included :) Basetune for Volvo T5 engine with VEMS, ---- NOTE all driving is at your own risk! ---- Firmware: 1.2.31 5cyl standard 60-2 trigger Injector: Siemens Deka 630cc Fuel E85 Turbo: Volvo 16T Pinouts: Standard 2+6 VEMS + Twin shield No idle engine. No boost control WBO: LSU 4.9 Ignition lowered 5 degrees in the table from optimal. --- ATTENTION! Increase at your own risk! --- Power approx. 300-330Whk. Backwards compatible with previous firmwares, but we recommend updating to 1.2.31
Read more...
  • Secure payment by card
  • E-mail us, we reply swiftly!

Description

Article no.: 159

Pinouts: Ignition coils: Cyl1: 35 Cyl2: 33 Cyl3: 10 Cyl4: 24 Cyl5 11 Injector: 1 = pin 7 2 = pin 19 3 = pin 9 4 = pin 8 5 = pin 20 Water pump/fan high: Pin 18 Fan/Low: pin 17 Fuel pump: Pin 6 Tacho: Stepper A Rev limit: 6500 BoostLimit: 220Kpa 1.2bar
