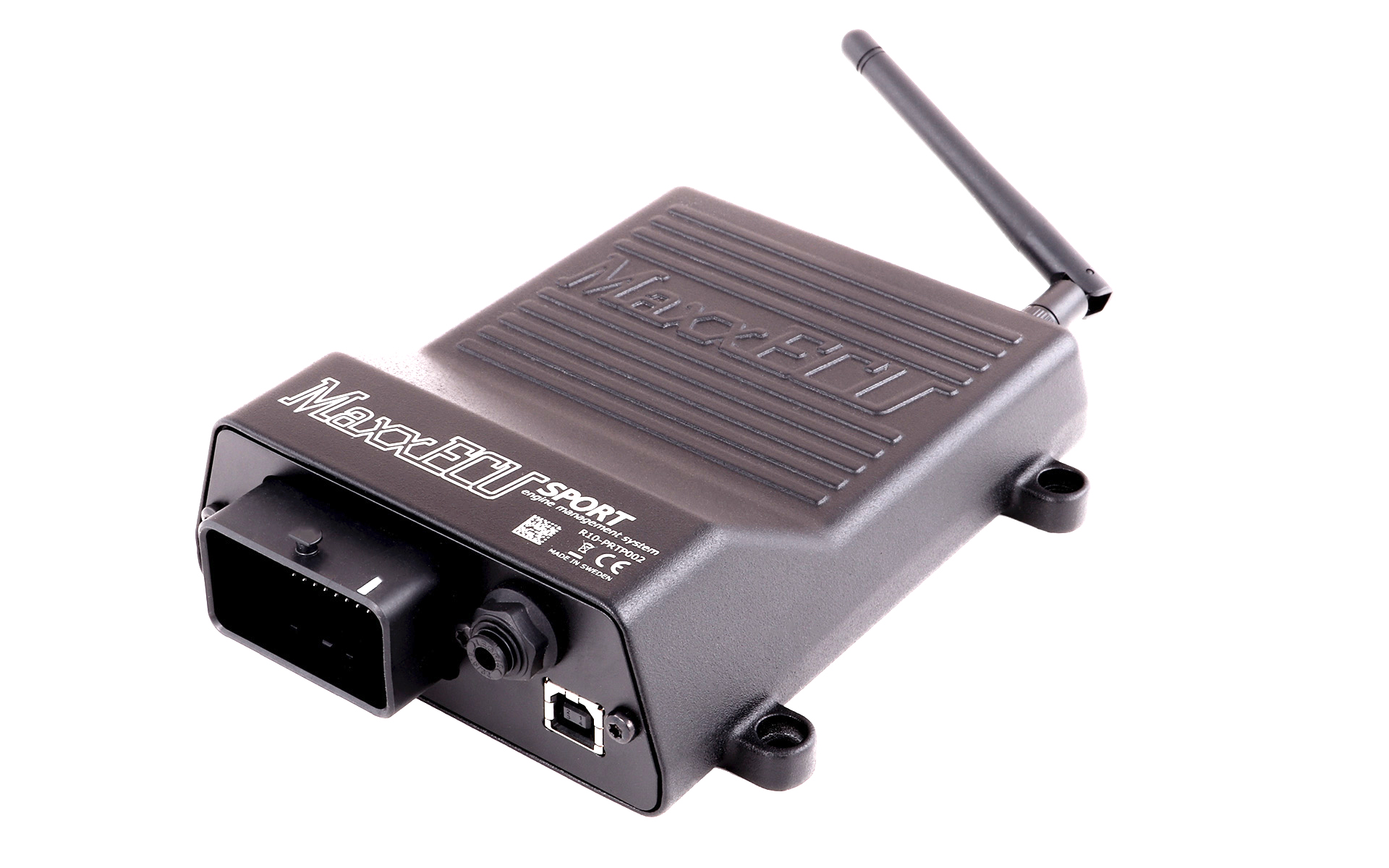

MaxxECU Sport Only engine control unit
MaxxECU SPORT, based on the market leading MaxxECU V1 and uses the same easy to use and powerful software to give you as a user total engine control!
Quick Facts:
Controls up to 6 cylinders sequentially (12 in wasted)
Built-in MAP sensor for charge pressure up to 3bar (400Kpa).
Built-in drive stage for broadband lambda (probe straight into the cable harness without external electronics).
Super fast and secure USB communication between ECU and PC.
Technical spec:
Bluetooth for flat (As street and mini lack)
2 trigger inputs.
IAT, TPS, CLT analog inputs.
Built-in drive stage for broadband lambda (LSU 4.2 or 4.9).
Built-in 400kPa MAP sensor.
E-Throttle support (which the Street lacks)
2 additional analog temperature inputs.
6 additional analog 0-5v inputs.
2 additional digital inputs.
6 Injector outputs (high/low-ohm Injector).
6 ignition outputs (without ignition stage).
7 extra flexible outputs. GPO (2A).
2 extra motor outputs. GPO 10-11 (2A)
CAN bus
MTune PC software with USB connection.
Super fast Cortex M3 120Mhz main processor.
