Volvo B230 (LH2.2) 240/740 Plug and Play Kit - MaxxECU
Volvo B230 (LH2.2) 240/740 Plug and Play Kit - MaxxECU
Volvo B230 (LH2.2) 240/740 Plug and Play Kit - MaxxECU - 2
Volvo B230 (LH2.2) 240/740 Plug and Play Kit - MaxxECU - 3

Volvo B230 (LH2.2) 240/740 Plug and Play Kit - MaxxECU

€1,997.15

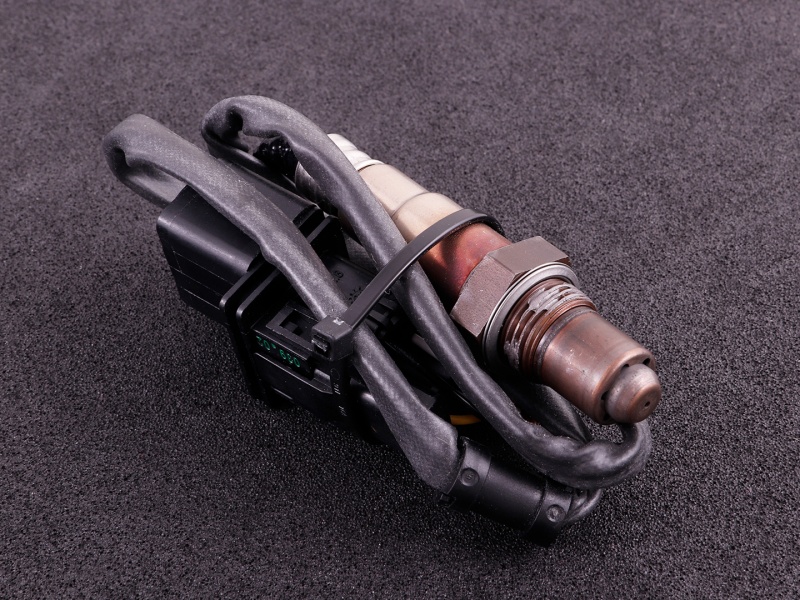

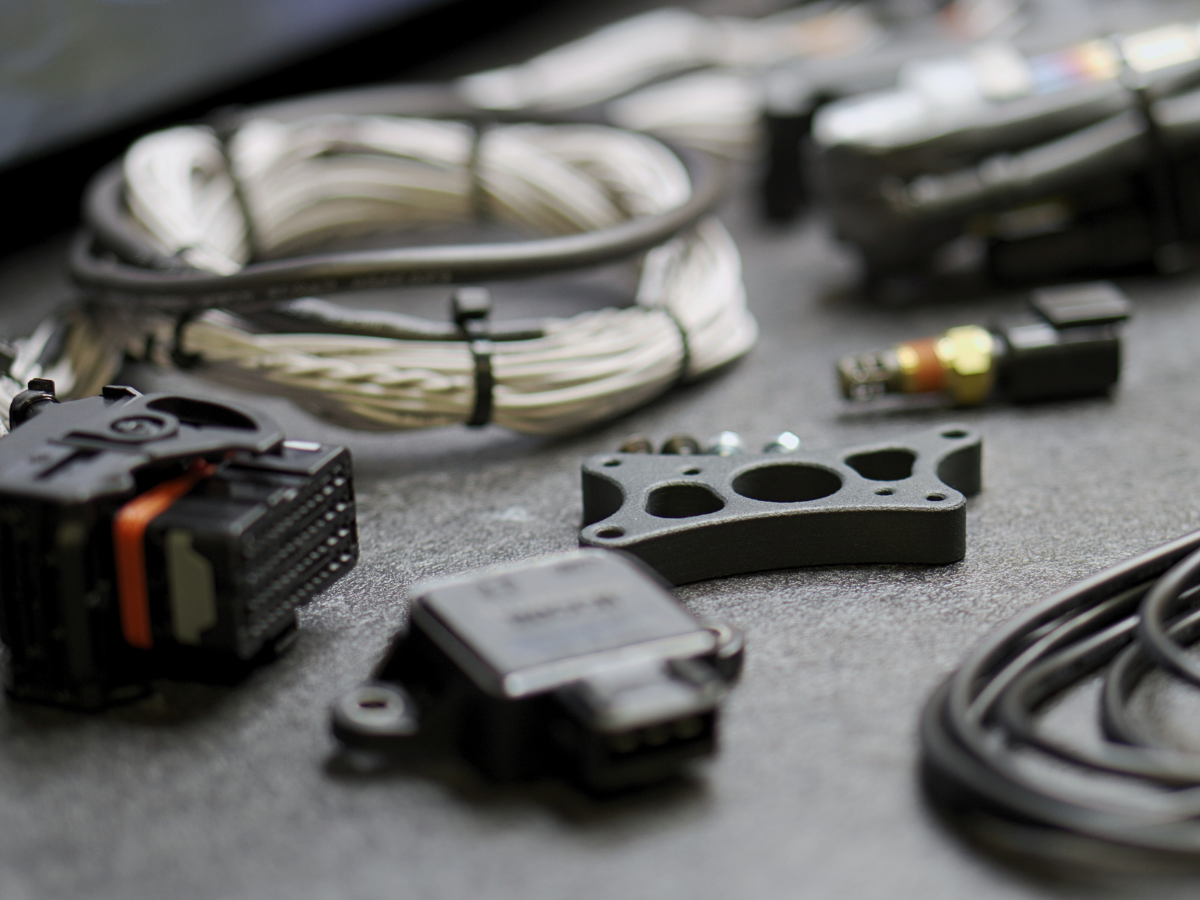

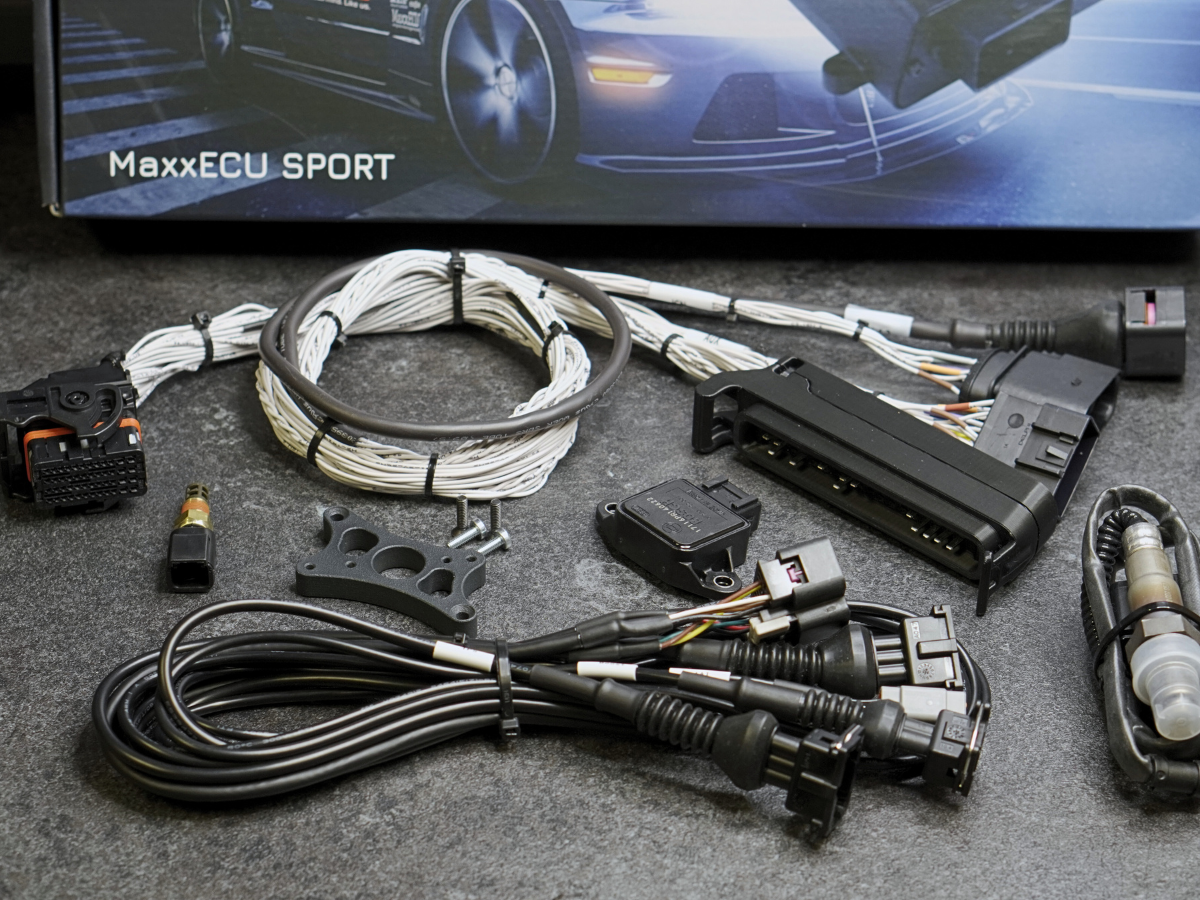

Our most popular product by far! MaxxECU Plug-and-Play kit for Volvo B230F and FT engines in 240 and 740 with LH2.2 year model 1987-1988A. The package includes: - MaxxECU Street, Sport or Race engine control (select in the menu) - Engdahl's own patch harness for LH2.4 - LSU 4.2 wideband lambda (4.9 is available as an option but requires you to change the connector yourself). - USB cable for PC - Bluetooth antenna for communication with tablet - 4 mm hose to the built-in MAP sensor - MAT sensor (intake temperature sensor) - Manual and installation instructions in Swedish and English. - Optimized startup folder Basic folder and mapping: The basic folder works to run on - but we strongly recommend that it be reviewed by a professional. We offer mapping in our dyno or remotely at an additional cost to ensure optimal performance and safety. Installation and options: No modification or cutting to the car's electrical system is required. Everything is plug-and-play and can easily be restored to original. - Installation takes about 1 hour - TPS sensor not included (needed for B230 - select in the menu) - Wiring for Wastefire, VAG COP or LSX coils - select in the menu - Ignition coil not included but can be purchased separately here. Swedish-made and proven: MaxxECU Street, Sport and Race are made in Sweden and are based on the market-leading MaxxECU V1. Regardless of model, you get access to the same powerful, easy-to-use software and total control over your engine.
Read more...

In stock: 1

  • Secure payment by card
  • E-mail us, we reply swiftly!

Description

Article no.: 364

Having a hard time deciding? Here is a quick comparison between the different controllers from MaxxECU.

MaxxECUStreetSportRace
Max cyl. (sequential) 6 6 8
Wasted spark support 12 12 12
Trigger inputs (VR/digital) 2 2 2
Additional analog inputs (temperature) 2 2 2
Additional digital inputs (temperature) 2 2 2
Broadband lambda (LSU 4.2 and 4.9)
CAN bus
Internal logging (8MB)
Sensor inputs: Intake temp, water temp and TPS
Launch
Anti-lag/shift-cut
Variable cam control (VVTi/VANOS/VarioCAM) support
Flex Fuel
Multi-stage boost pressure regulation
Bluetooth (MDash/RealDash)
Additional analog inputs (+VR) 2 2 4
E-gas ✅(double)
Additional outputs GPO 5 7 9+2
Knock sensor/control ✅(2)
Built-in EGT ✅(8)
