BMW M50/M52 IV and Vanos Plug and Play kit - MaxxECU

MaxxECU Sport or Race engine management package with patch harness for BMW M50 IV/Vanos and M52

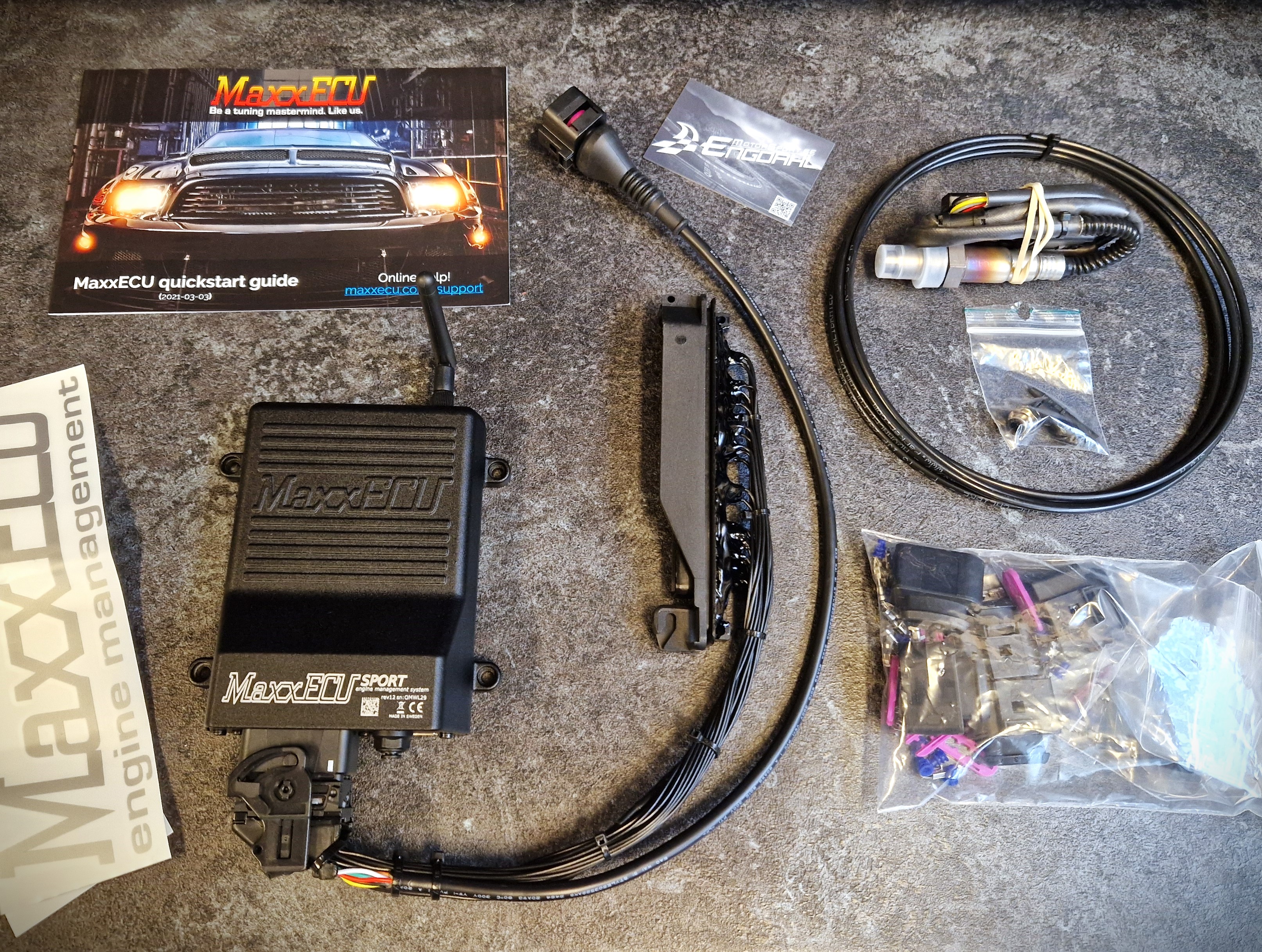

The MaxxECU Sport/Race engine control package is an advanced replacement for the original ECU in BMW with M50 and M52 engines. This plug-and-play system provides complete control over engine parameters and maximizes performance for both street and track use. Installation is simple and requires no modifications to the car's electrical system. Included in the package:
- MaxxECU Sport or Race controller

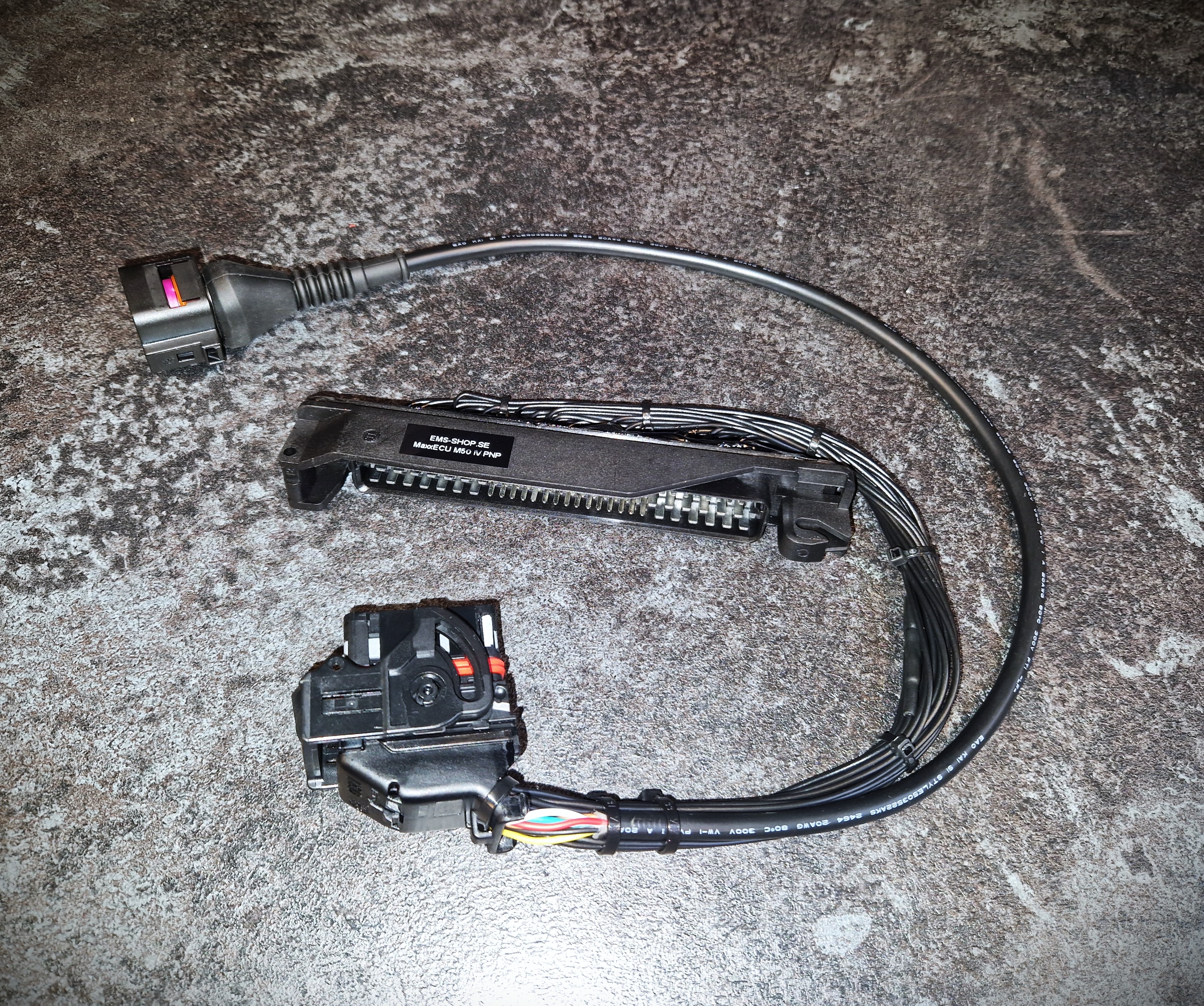

- Engdahl's own manufactured patch harness
- MAP hose with nipple for intake
- LSU 4.2 lambda probe
- Basic folder Installation:
To use this system it is necessary to change the ignition coils to for example VAG 115 coils with built-in ignition stage, because MaxxECU does not have built-in ignition stages. After replacing the ignition coil connectors, just plug everything in, power up and start mapping. Installation time is about one hour. The system also works well when changing the engine to another body, provided the original engine harness is intact. Specifications:
- Controls up to 6 cylinders sequentially (12 in wasted spark)
- Built-in MAP sensor for boost pressure up to 3 bar (400 kPa)
- Built-in wideband lambda drive stage (LSU 4.2 or 4.9)
- E-Throttle support
- 6 spreader outputs (high/low-ohm spreader)
- 6 ignition outputs (without ignition step)
- 7 additional flexible outputs (GPO, 2A)
- 2 additional motor outputs (GPO 10-11, 2A)
- 2 trigger inputs
- IAT, TPS, CLT analog inputs
- 2 additional analog temperature inputs
- 6 additional analog 0-5V inputs
- 2 additional digital inputs
- CAN bus support
- MTune PC program with USB connection
- Super fast Cortex M3 120 MHz main processor Accessories included:

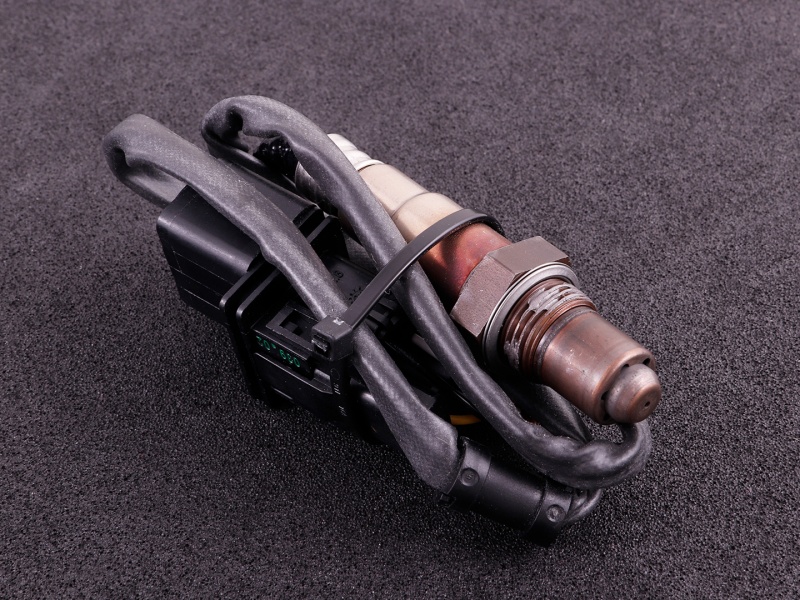

- Bosch wideband lambda LSU 4.2 including connector
- Cable harness including connector for connection to control box
- USB cable for PC
- Bluetooth antenna for communication between tablet and control system
- Installation manual in Swedish and English
- USB flash drive with M-Tune software
- 4 mm hose to the built-in MAP sensor
- Extra cables for connecting, for example, plus feed to spreaders and ignition coils Compatibility and benefits:
The MaxxECU Sport/Race engine management package offers a smooth installation and provides total engine control for BMW M50 and M52 engines. With market-leading technology and user-friendly software, you get improved performance and control compared to the original system. Ideal for both street and track use.
