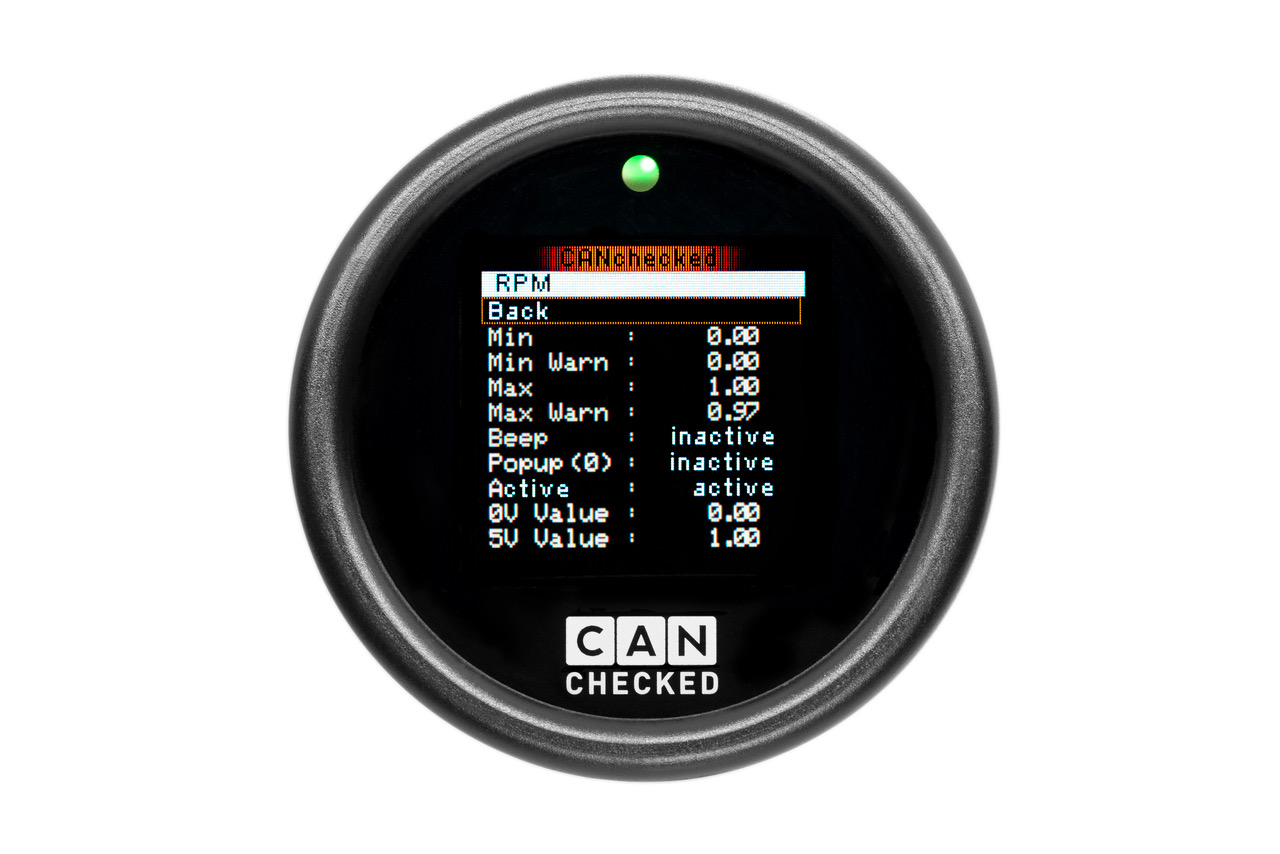

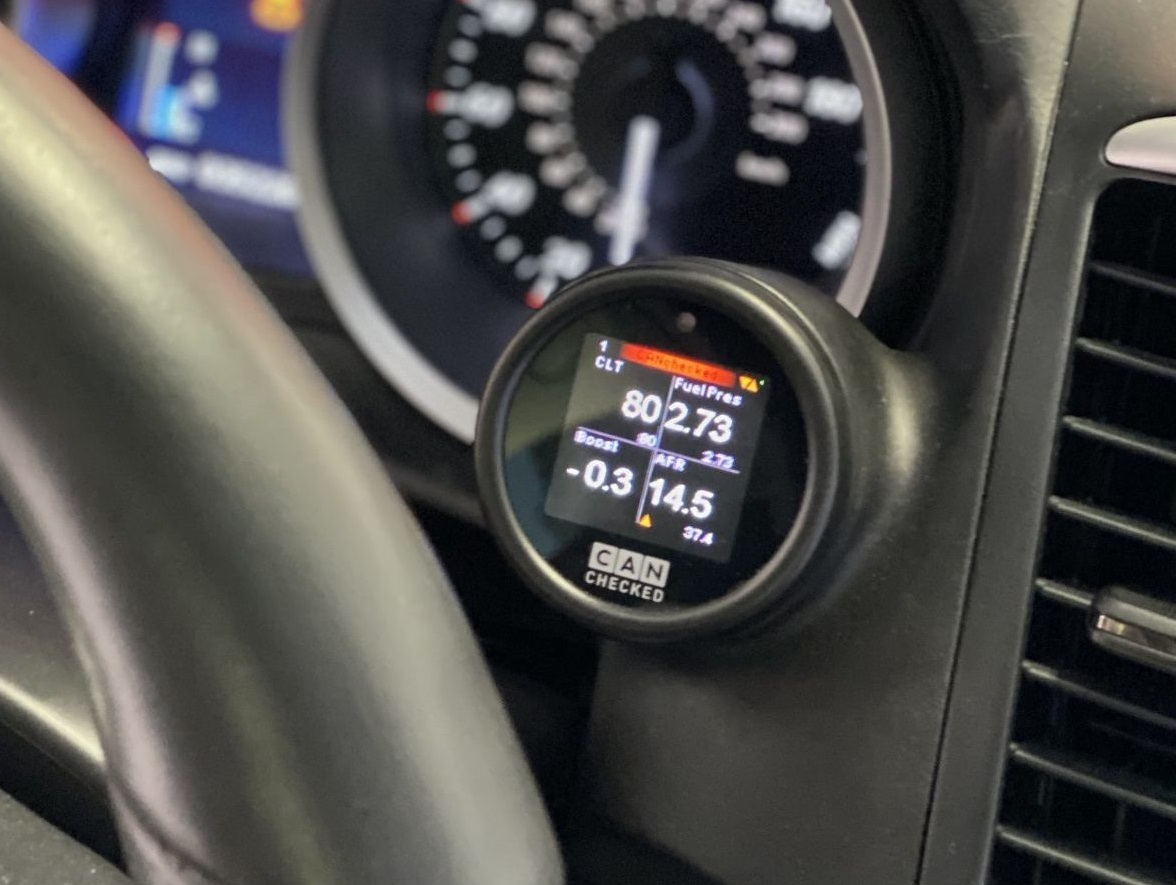

CAN-Checked MFD15 programmable Canbus Display 52mm Gen2
€317.35€290.11
Lowest price in the last 30 days€307.56Extremely potent and useful display for those of you who don't want to drive a tablet or for those of you who drive MaxxECU street and Mini who don't have blue teeth!
This small display can show all imaginable data available over CAN.
Up to 8 different displays, which can be selected with the supplied rotor switch.
Up to 33 permanently defined sensors
4 additional analog inputs that can be used
Option for shiftlight
Supports MaxxECU default CAN
Supports RPM, TPS, MAP, IgnAng, InjTime, FuelD, Bost, Lambda1, EMAP, FuelPress, LambdaCorrection, Baro, Battery, IAT, CLT, OilTemp, EThanol, Gear, Speed, EGT1-8, OilPressure etc.
The following controllers are currently supported:
- MaxxECU
- trijet (Premium, Bee, trigifant) - trijet plus with restrictions
- Megasquirt 2 and 3
- K-Data KDFI
- UMC1 / UMC2
- Ecumaster EMU Black and Classic (with Can Bus Adapter)
- VAG (VW / Audi / Seat)
- Motorsport Electronics ME221 / ME442 (Can Bus)
- LinkECU
- MaxxECU
- Motec
- SCS Delta
- BMW E46 Can Bus Protocol
- VW / Audi Can Bus Protocol
- OBD2 Can Bus (250 / 500kbit 11 / 29bit)
with serial adapter:
- VEMS
- ME221
Read more here:
http://www.canchecked.de/mfd15/
- Secure payment by card
- E-mail us, we reply swiftly!
Description
Article no.: 238
MFD15 can read data directly via OBD2 Can Bus.
The display recognizes 11-bit and 29-bit identifiers automatically.
With our OBD plug and play cable, the connection is made directly to the OBD socket. In addition, only the 12V connection needs to be used with the supplied fuse adapter.
The following values are read over OBD2:
Speed (RPM)
Engine load
Fuel pressure
Pressure Increase (MAP)
Vehicle speed
Ignition angle (IgnAng)
Inlet Temperature (IAT)
air mass (MAF)
Oil temperature (OilTemp)
Fuel pressure in relation to inlet vacuum (FuelRail)
Water Temperature (CLT)
Lambda1-8
Cat temperature bank1 sensor 1 (CatTemp1)
Cat Temperature Bank1 Sensor 2 (CatTemp2)
Cat temperature bank2 sensor 1 (CatTemp3)
Cat temperature bank2 sensor 2 (CatTemp4)
4 additional analog inputs
